Install EMF actuator

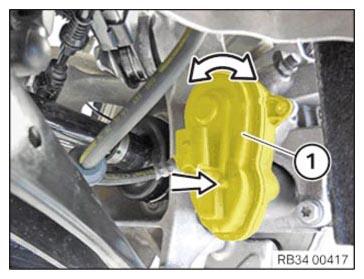

• EMF actuator (1) Carefully fit controller drive until gearing engage and EMF actuator rests flush on brake caliper.
• If necessary, turn the EMF actuator slightly until the bore and the screw thread are aligned.

  Courtesy of BMW OF NORTH AMERICA, INC.

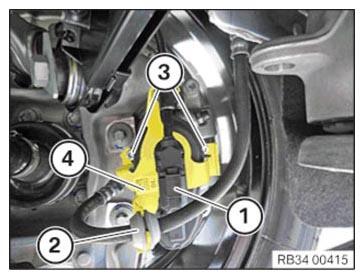

• Attach the holder (4) and position and tighten the bolts (3).
  TIGHTENING TORQUES SPECIFICATIONS



  EMF actuator to brake caliper
  Replace screws.	tightening torque	12 Nm

• Connect plug (1).
• Attach the brake hose (2) in the holder.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to AFTER EMF ACTUATOR REPLACEMENT: PUTTING ELECTROMECHANICAL HOLDING BRAKE INTO OPERATION .
