Prepare for the installation of the brake booster

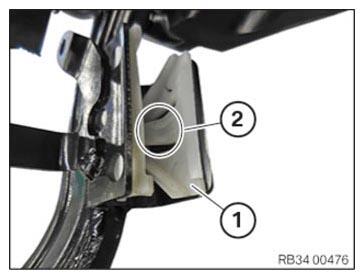

Check the retaining lugs of the holding clip (1) in the marked area (2) for damage and replace the holding clip where required.

Courtesy of BMW OF NORTH AMERICA, INC.
In all the G2x vehicles with automatic transmission:

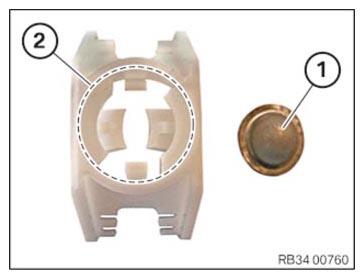

Before installing the new holding clip, press ball socket (1) into holding clip (2).

Ball socket (1) must engage perceptibly.

Courtesy of BMW OF NORTH AMERICA, INC.

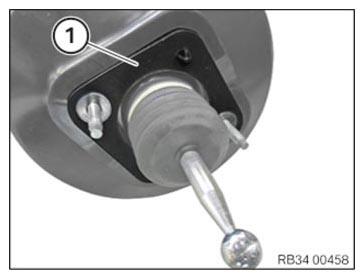

Replace the gasket (1) on the brake booster
Parts: Gasket
Thoroughly clean the sealing surfaces on the brake booster and on the firewall.

Courtesy of BMW OF NORTH AMERICA, INC.
