Install front brake hose

• Attach brake hose to the holder (1).

  Observe installation sequence:

  • Secure brake hose in the holders.
  • Move wheels into straight-ahead position.
  • Screw brake hose onto the connection between pipe and brake hose.
  • Screw brake hose on brake caliper.

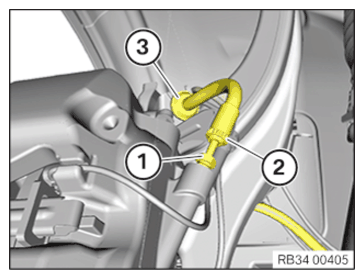

• Position and tighten the union screw (2). If necessary, use the square end (3) for counter support.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATIONS



  Brake pipe screw connection/Union screws
  tightening torque	17 Nm

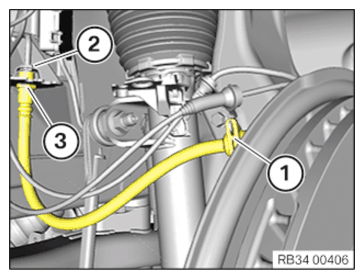

• Position and tighten the brake hose (1) on the brake caliper and use the knurling (2) for counter support as needed.
  TIGHTENING TORQUES SPECIFICATIONS



  Brake hose to brake caliper, front
  tightening torque	17 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach brake hose to the holder (3).

Follow-up work

• Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
• Refer to REMOVING THE BRAKE PEDAL TENSIONER .
• Refer to FLUSH AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT .
