51 12 157 Replace rear bumper panel (2019-2021)
>>
Remove the rear view camera (RFK)
Remove the rear view camera (RFK)
Unlock plug connection and disconnect.

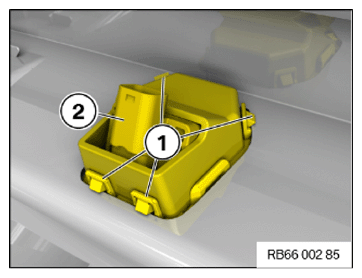

Loosen the detents
(1)
.
Remove RFK
(2)
with bracket.
Courtesy of BMW OF NORTH AMERICA, INC.

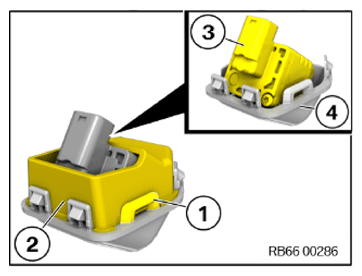

Release detents
(1)
on both sides and remove holder
(2)
.
Remove rearview camera
(3)
from frame
(4)
.
Courtesy of BMW OF NORTH AMERICA, INC.
