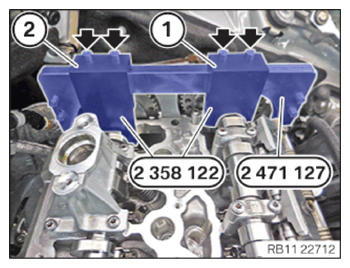

Remove the test gauges for securing the camshafts
- Remove screws (arrows).
- Feed test gauge (1) out of the set of special tools 2 358 122 between the intake camshaft and basic carrier of the set of special tools 2 471 127 and remove.
- Feed test gauge (2) out of the set of special tools 2 358 122 between the exhaust camshaft and basic carrier of the set of special tools 2 471 127 and remove.
