Remove both trim pieces for the rear window frame
NOTE:
Description is for left component only. Procedure on the right side is identical.

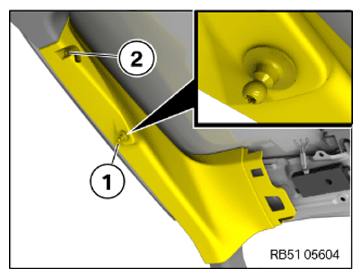

- Loosen the ball studs (1).
- Loosen screw (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

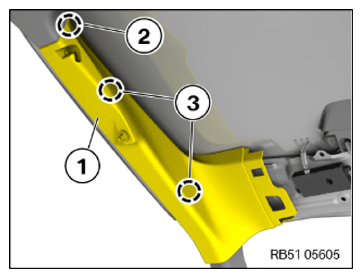

- Release the trim for the rear window frame (1) from the detent (2) and the clips (3) and remove.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
