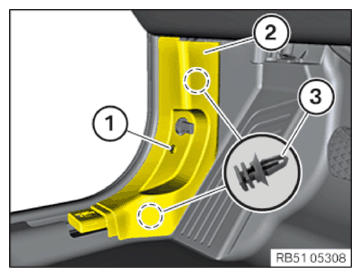

Installing the side trim panel in the footwell at the A-pillar, to the left and right

Check the clips (3) for damage and replace if necessary.
Position the side trim panel (2) and engage it in the clips (3).
Make sure that the side trim panel (2) is correctly fitted against edge protection.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

A-pillar footwell side trim panel
screw	Tightening torque	2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

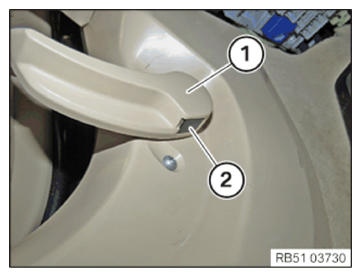

Install hood release lever (1).
Pull the hood release lever (1) to the rear.
Install the locking mechanism (2).

Courtesy of BMW OF NORTH AMERICA, INC.

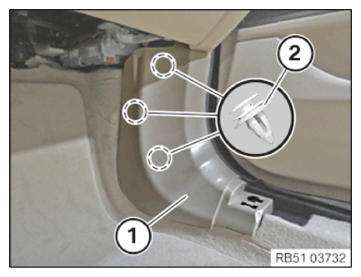

Installing side trim panel in footwell on right A-pillar
Check the clips (2) for damage and replace if necessary.
Position the side trim panel (1) and engage it in the clips (2).
Make sure that the side trim panel (1) is correctly fitted against edge protection.

Courtesy of BMW OF NORTH AMERICA, INC.
