Installing the door sill cover strip on the rear left and right

NOTE: The steps shown on one side must be performed on both sides.

NOTE: Description is for left component only. Procedure on the right side is identical.

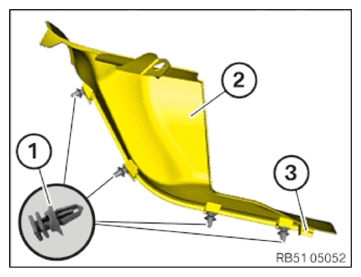

Remove the remaining clips (1) in the body and mount them at the door sill cover strip (3).
Check the clips (1) and the guide (2) for damage, replace if necessary.
Check the clips (1) and the guide (2), they must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

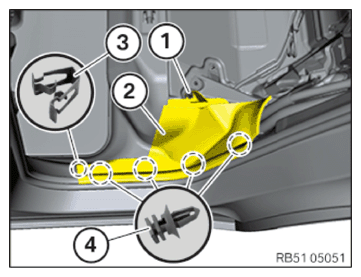

Position the rear door sill cover strip (2) on the body.
Engage the rear door sill cover strip (2) at the clamp (3) and the clips (4).

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Door sill cover strip to body
Plastic nut	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

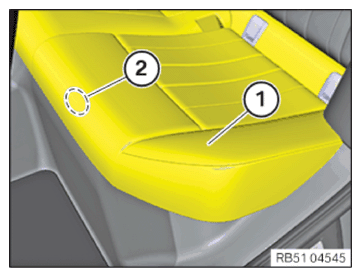

Engage the rear seat (1) downward in the area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
