Removing the positive battery cable from the starter to remote positive terminal
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
Preliminary work
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to DEACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to REMOVING THE RIGHT AIR DUCT .
- Refer to REMOVING CLEAN AIR PIPE CYLINDERS 4-6 .
- Refer to PARTIALLY REMOVING THE MOUNT OF THE HOOD SEAL ON LEFT AND RIGHT .
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING INTAKE SILENCER HOUSING .

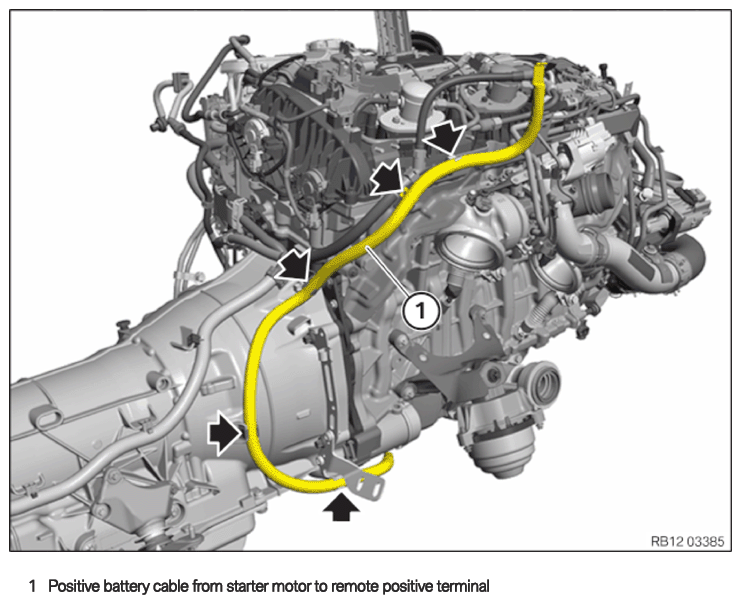

Positive battery cable from the starter motor to the remote positive terminal
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
- Unlock the locks (1) .
- Guide the cover (2)
out in the arrow direction and remove it.

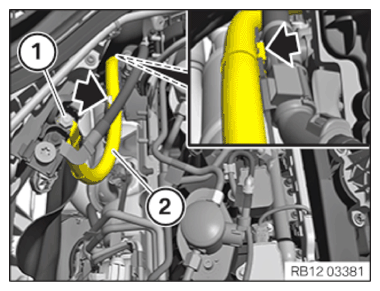

- Loosen nut (1) .
- Guide out positive battery cable (2) from the holders (arrows) and keep it aside.

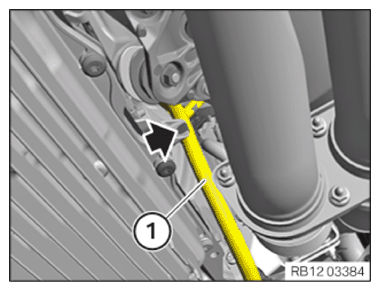

- Feed the positive battery cable (1)
out of the holder (arrow) and place aside.

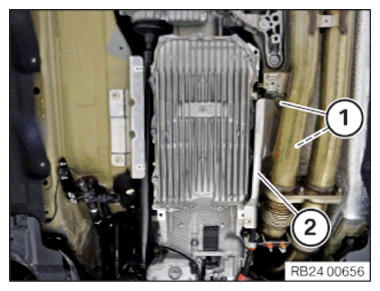

- Loosen nuts (1) .
- Guide out and remove retaining plate (2)
.

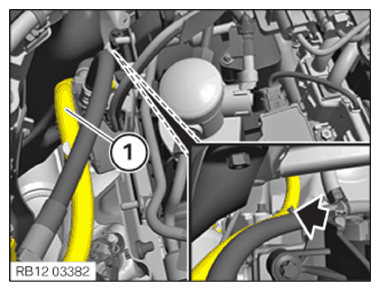

- Feed the positive battery cable (1) out of the holders (arrows) and place aside.

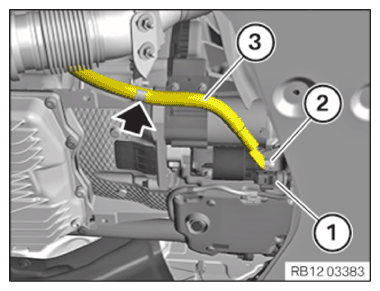

- Unlock plug connection (1) and disconnect.
- Release nut (2) .
- Guide out positive battery cable (3)
from the holder (arrow) and keep it aside.
- Remove positive battery cable (1) and remove.
