Remove exhaust camshaft adjuster

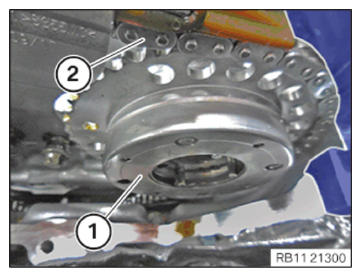

NOTE: The figure shows the rear of the engine.

Pull out and remove exhaust camshaft adjuster (1) from the timing chain (2) .

G14191925

Courtesy of BMW OF NORTH AMERICA, INC.
