Removing trailing link at spring bolt
Preliminary work
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to PARTIALLY REMOVING THE MOUNT OF THE HOOD SEAL ON LEFT AND RIGHT .
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

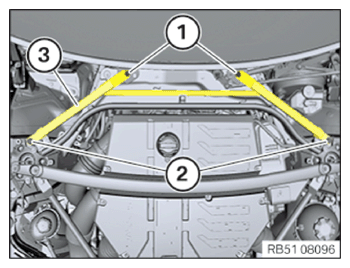

- Loosen screws (1) and (2) .
- Remove tension strut (3) at the strut tower upwards.
