Installing the support for dashboard
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Carefully feed in support for dashboard, and connect and lock all connectors.
- First fasten heating and air-conditioning unit on support for dashboard.

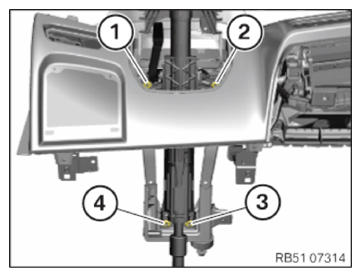

- Tighten nuts in the sequence (1) , (2) , (3) and (4) .
TIGHTENING TORQUES SPECIFICATION
| Heating and air-conditioning unit on support | ||
|---|---|---|
| Nut M6 | tightening torque | 4 Nm |
- Tighten nuts (2) .
TIGHTENING TORQUES SPECIFICATION
| Support for dashboard | ||
|---|---|---|
| Nut M8 | tightening torque | 21 Nm |
| M8 screw | tightening torque | 21 Nm |
| Nut M6 | tightening torque | 8 Nm |

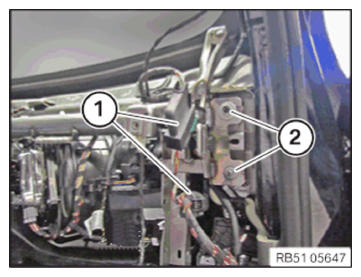

- Connect connectors (1) and lock.

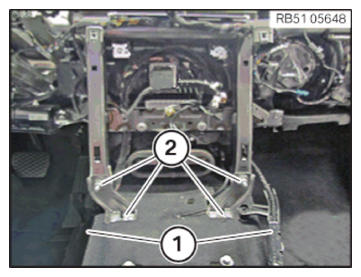

- Push the carpet (1) in the area of the B-pillar to the side.
- Connect connectors (2)
and lock.
- Connect connectors (1) and lock.
- Secure wiring harness at the heating and air-conditioning unit.
- Install the retainer on the left and right and tighten the nuts (2) .
TIGHTENING TORQUES SPECIFICATION
| Support for dashboard | ||
|---|---|---|
| Nut M8 | tightening torque | 21 Nm |
| M8 screw | tightening torque | 21 Nm |
| Nut M6 | tightening torque | 8 Nm |
- Secure conduits (1) .
- Attach the connector (1)
to the airbag control unit and lock it.
- Tighten nuts (1) .
TIGHTENING TORQUES SPECIFICATION
| Support for dashboard | ||
|---|---|---|
| Nut M8 | tightening torque | 21 Nm |
| M8 screw | tightening torque | 21 Nm |
| Nut M6 | tightening torque | 8 Nm |
- Tighten down screws (2) .
TIGHTENING TORQUES SPECIFICATION
| Support for dashboard | ||
|---|---|---|
| Nut M8 | tightening torque | 21 Nm |
| M8 screw | tightening torque | 21 Nm |
| Nut M6 | tightening torque | 8 Nm |
- Connect connectors (3) and lock.
- Position steering column correctly.

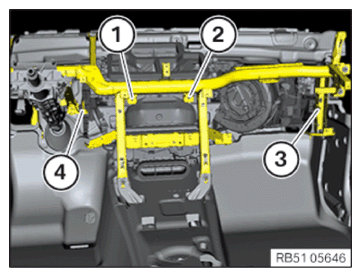

- Tighten nuts on the steering column in the sequence (1) , (2) , (3) and (4) starting from the footwell.
TIGHTENING TORQUES SPECIFICATION
| Steering column to dashboard support | ||
|---|---|---|
| M8 Observe tightening sequence. |
Tightening torque | 21.4 Nm |
- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Support for dashboard | ||
|---|---|---|
| Nut M8 | tightening torque | 21 Nm |
| M8 screw | tightening torque | 21 Nm |
| Nut M6 | tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING INSTRUMENT PANEL TRIM .
- Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
- Refer to INSTALLING THE FRONT RIGHT DOOR SILL COVER STRIP .
- Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to INSTALLING AIRBAG UNIT OF THE M SPORTS STEERING WHEEL .
- Refer to INSTALLING THE LIGHT OPERATING UNIT .
- Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
- Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
- Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
- Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- Refer to INSTALLING HEAD UNIT .
- Refer to INSTALLING RADIO OPERATING UNIT AND AIR CONDITIONING CONTROL PANEL .
- Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
- Refer to INSTALLING DECORATIVE STRIP ON CENTER OF DASHBOARD .
- Refer to INSTALLING RIGHT GLOVE COMPARTMENT .
- Refer to INSTALLING THE CENTER CONSOLE .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
