Removing ornamental grille on front bumper panel
Preliminary work
- Refer to REMOVING FRONT ORNAMENTAL GRILLE .
- Refer to PARTIALLY REMOVING THE LEFT AND FRONT RIGHT WHEEL ARCH TRIM .
- Refer to PARTIALLY REMOVING THE FRONT SECTIONS OF BOTH WHEEL ARCH COVERS AT THE FRONT .
- Refer to REMOVING FRONT BUMPER COVER .

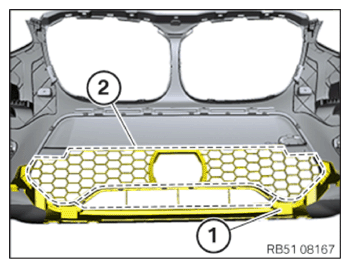

- Release ornamental grille (1) at latch mechanisms along the dotted line (2) and remove.
