Install the auxiliary stop lamp

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

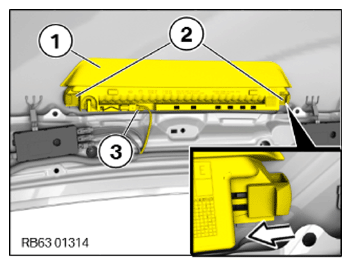

Position auxiliary brake light (1) .
Lock the slide (2) in arrow direction.
Connect connectors (3) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TOP TRIM FOR THE REAR WINDOW FRAME .
Refer to INSTALLING THE REAR STORAGE SHELF .
