Installing trim panel of luggage compartment

Check

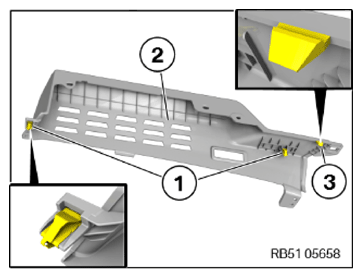

• Check the clamps (1)  on the trim panel of the luggage compartment capping (2)  for damage and replace if necessary.
• Check the detent (3)  on the trim panel of the luggage compartment (2)  for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detent (3)  is damaged.

Measure

• Replace trim panel of luggage compartment (2)  .

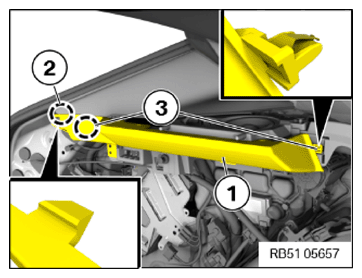

• Position trim panel of luggage compartment (1)  .
• Clip in the trim panel of the luggage compartment (1)  with the clamps (3)  and the detent (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

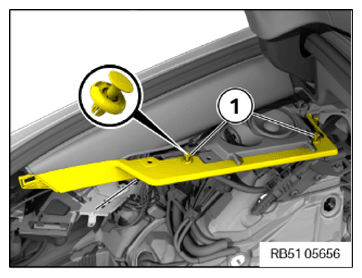

• Secure expanding rivet (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING COVER FOR LUGGAGE COMPARTMENT .
• Refer to INSTALLING THE BOTTOM D-PILLAR TRIM PANEL .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING THE COVER OF THE SEAT BELT FINISHER STRIP .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING THE FRONT STORAGE SHELF .
