Installing the footrest

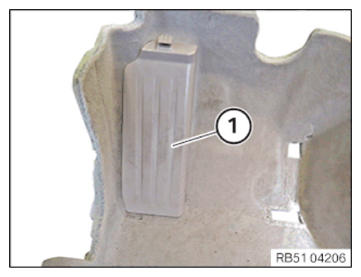

• Clean the footrest (1)  with solvent cleaner R1.

• Pre-treat the footrest (1)  using primer 206.
• Apply an adhesive bead (2)  with Ø 5 mm to the footrest (1)  , use window glass adhesive.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Bond the footrest (1)  to the carpet.
• Make sure that no window glass adhesive gets on the visible area of the carpet.
• Allow 8 h for hardening of the window glass adhesive.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
• Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
