Install luggage compartment capping

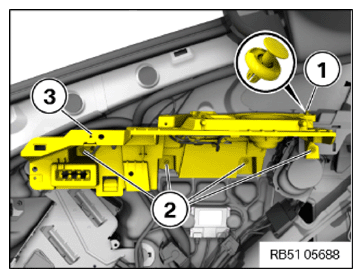

• Clip the holder of the vehicle wiring harness into the luggage compartment capping (3)  and connect and lock the associated connector.
• Feed in luggage compartment (3)  and position.
• Tighten screws (2)  .
• Fasten expanding rivet (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• For equipment specification with backrest remote unlocking.

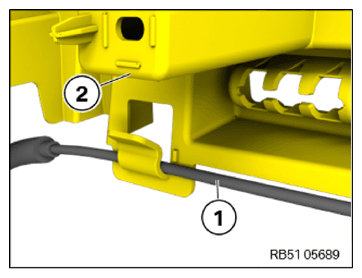

• Attach Bowden cable (1)  in luggage compartment (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING D-PILLAR TRIM PANEL .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
• Refer to INSTALLING TRIM PANEL OF LUGGAGE COMPARTMENT .
• Refer to INSTALLING LUGGAGE COMPARTMENT LAMP IN LUGGAGE COMPARTMENT .
• Refer to INSTALLING COVER FOR LUGGAGE COMPARTMENT .
• Refer to INSTALLING THE BOTTOM D-PILLAR TRIM PANEL .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING THE COVER OF THE SEAT BELT FINISHER STRIP .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING THE FRONT STORAGE SHELF .
