Installing the front sill trim
NOTE:
Description is for left component only. Procedure on the right side is identical.

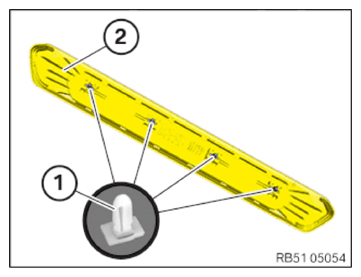

- Remove the remaining clips (1) the body and mount them at the front sill trim (2) .
- Check the clip mounts (1)
for damage and replace where required.
The clip mounts and clips (1) must not be damaged or missing.

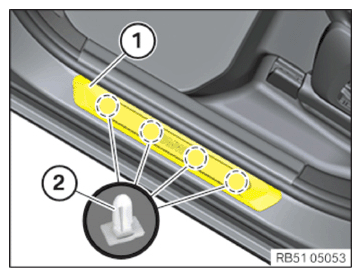

- Position front sill trim (1) correctly and clip in with the clips (2) .
