Installing the center ventilation grille
Installing the center of the ventilation grille with the integrated air conditioning control panel
- Place ventilation grille (2) on decorative strip (3) with the integrated air conditioning control panel and position it correctly.

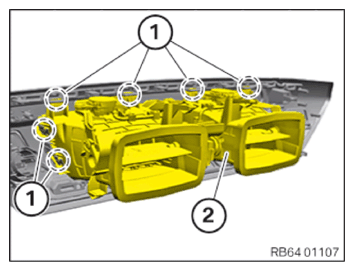

- Engage detents (1)
on ventilation grille (2)
.
- Engage the detents (2) .
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Ventilation grille to decorative strip/instrument panel | ||
|---|---|---|
| Screw | Tightening torque | 1.8 Nm |
Installing the center ventilation grille
- Place the ventilation grille (2) on the decorative strip and position it correctly.

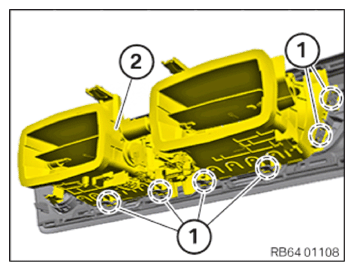

- Engage the snap-in lugs (1)
at the ventilation grille (2)
.
- Engage the snap-in lugs (1) at the ventilation grille (2) .
