51 45 Dashboard Trim, Instrument Panel Trim
>>
51 45 382 Replacing decorative strip on dashboard at right
>>
Installing the right ventilation grille
Installing the right ventilation grille

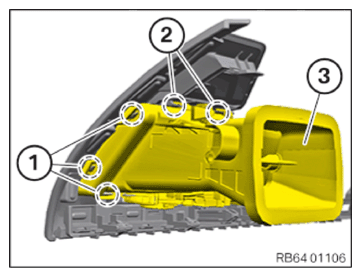

Place the right ventilation grille
(3)
on the decorative strip and position it correctly.
Engage retaining lugs
(1)
and
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.

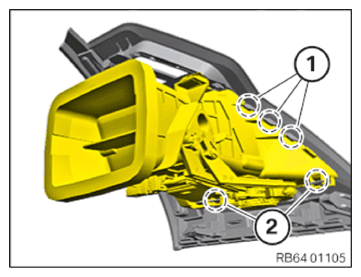

Engage the snap-in lugs in the areas
(1)
and
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
