Installing D-pillar trim panel

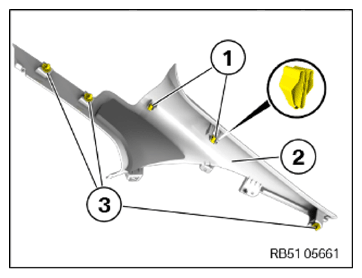

- Check the clamps (1)
and clips (3)
on the D-pillar trim panel (2)
for damage, replace if necessary.

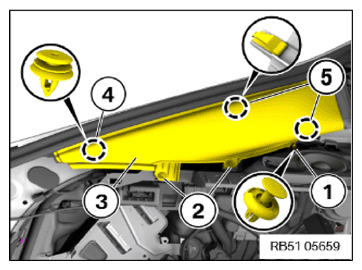

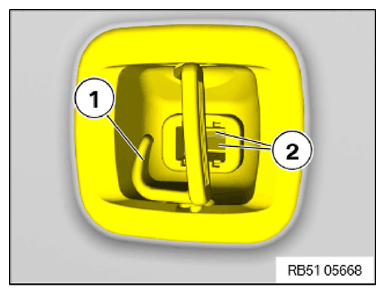

- Fit the D-pillar trim panel (1)
and clip it into the clips (2)
.
- Feed in the D-pillar trim panel (3) below the sealing lip on the tailgate seal.
- Clip in D-pillar trim panel (3) from the clip (5) and from the clamps (4) .
- Tighten down screws (2) .
- Fasten expanding rivet (1) .
Follow-up work
- Refer to INSTALLING C-PILLAR TRIM PANEL .
- Refer to INSTALLING TRIM PANEL OF LUGGAGE COMPARTMENT .
- Refer to INSTALLING LUGGAGE COMPARTMENT LAMP IN LUGGAGE COMPARTMENT .
- Refer to INSTALLING COVER FOR LUGGAGE COMPARTMENT .
- Refer to INSTALLING THE BOTTOM D-PILLAR TRIM PANEL .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to INSTALLING THE COVER OF THE SEAT BELT FINISHER STRIP .
- Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING THE FRONT STORAGE SHELF .
