Install the rear window

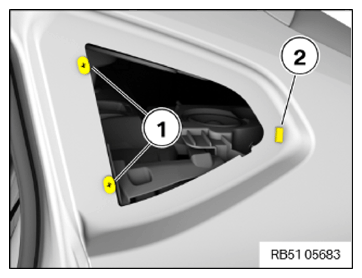

• Remove the remaining guide pins (1)  and Dual Lock tape (2)  .
• Clean bonding surface.
• Stick new Dual Lock tape (2)  on at marks on body area.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean bonding surface on side window (2)  .

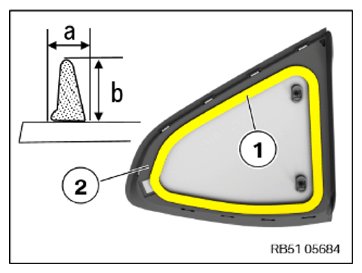

• Overview for side window bonding:

  a [mm] = width of adhesive bead	8±1
  b [mm] = height of adhesive bead	15±1

• Apply adhesive bead (1)  continuously around PVC coating (2)  .

  For reuse of the side window glass, apply the adhesive bead to the cut back adhesive bead of the side window glass.

  Courtesy of BMW OF NORTH AMERICA, INC.

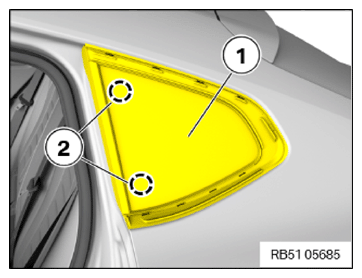

• Position side window (1)  on side panel, and feed in with guide pins (2)  .
• Align side window (1)  on side panel, and engage in Dual Lock tape.
• Secure the side window (1)  with the yellow plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM STRIP AT THE REAR WINDOW .
• Refer to INSTALLING D-PILLAR TRIM PANEL .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
• Refer to INSTALLING TRIM PANEL OF LUGGAGE COMPARTMENT .
• Refer to INSTALLING LUGGAGE COMPARTMENT LAMP IN LUGGAGE COMPARTMENT .
• Refer to INSTALLING COVER FOR LUGGAGE COMPARTMENT .
• Refer to INSTALLING THE BOTTOM D-PILLAR TRIM PANEL .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING THE COVER OF THE SEAT BELT FINISHER STRIP .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING THE FRONT STORAGE SHELF .
