Install the rear window
- Prepare the standard tool.
Standard tool:

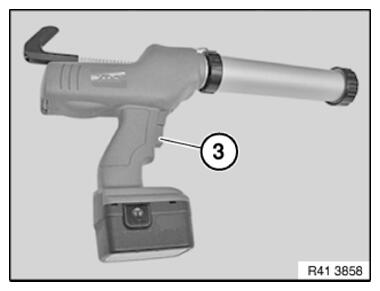

Cordless cartridge gun
Cordless cartridge gun
81 49 2 405 782
- Prepare the adhesive.
ADHESIVE SPECIFICATION
| Window glass adhesive (single cartridge) | 300 ml, Rest of World | 83192289286 |
| 300 ml, USA | 83192289181 | |
| 300 ml, CHN | 83192180002 |
- Use standard nozzle C.
TECHNICAL DATA SPECIFICATION
| C-nozzle | ||
|---|---|---|
| For windshields, rear windows, and body-specific side window glass | Diameter A | 7.5 +1-1 min |
| Height B | 13 +1-1 mm | |
CONSUMABLE SPECIFICATION
| C-nozzle | 83192155589 |
- Provide two glue cartridges.
- Prepare a glue cartridge with standard nozzle C.
- Apply bead joint in area (1) .
- Apply adhesive bead within the mark on the rear window
TECHNICAL DATA SPECIFICATION
| Adhesive bead | |
| b = Width | 7 mm... 9 mm |
| h = Height | 11 mm... 13 mm |
- Carefully perform the following actions on rear window (1)
with suction lifters:
- Bring it parallel to C-pillar
- apply and press at the bottom on the seal
- Align sides evenly
- evenly press all around and engage at the hook and loop tape (dual-lock tape)
- Make sure that the seal (2) lies evenly on the tailgate (3) .
- Secure rear window (1)
with adhesive tap on the roof.
- Connect the (2) connector and hook the cable bracket.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Ground strap to trunk lid | ||
|---|---|---|
| Oval-head screw | tightening torque | 6.8 Nm |
