Body Equipment -- Repair (F98)
>>
51 16 Mirrors, Consoles, Interior Trim
>>
51 16 368 Replace right hand glove box and casing too
>>
Remove glove box lid
Remove glove box lid

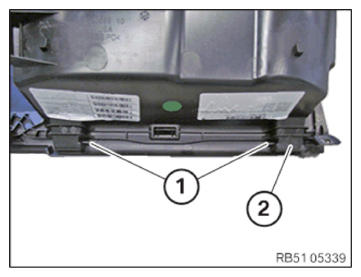

Carefully drive pin
(1)
outwards out of the hinge of the glove compartment
(2)
.
Remove glove box lid.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
