Installing the front storage compartment

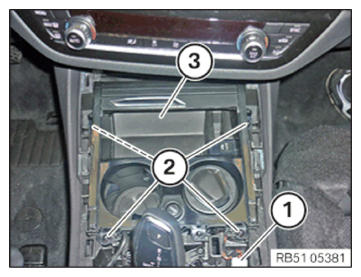

• Attach connector to storage compartment (1)  .

  The connectors must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position the storage compartment (3)  .
• Tighten down screws (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

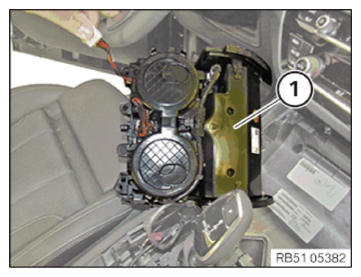

• Connect connector (1)  .

  The connectors must engage audibly.

Follow-up work

• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
