Installing the center armrest
Installing the center armrest

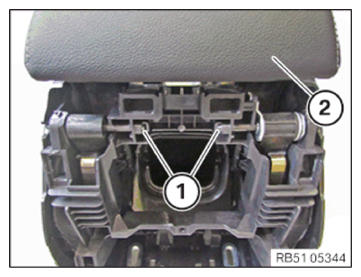

Feed the center armrest
(2)
from above into the center console.
Carefully drive in bolt
(1)
from outside to inside up to the stop.
