Installing the center armrest storage compartment

• Feed in storage compartment and connect all plug connections as necessary.

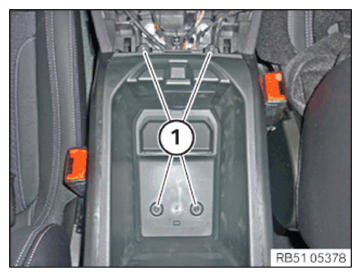

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

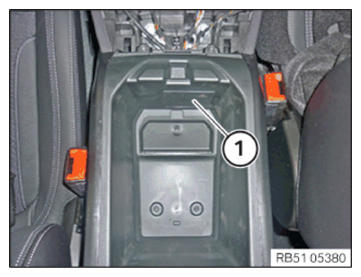

• Mount and engage trim (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

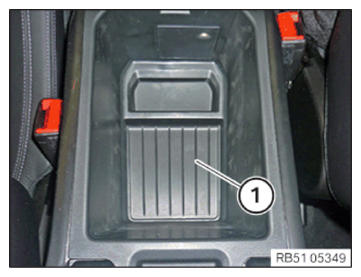

• Install insert (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
