51 16 164 Replacing rear center console trim
>>
Installing the rear ventilation grille
Installing the rear ventilation grille

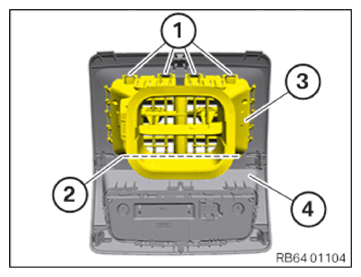

Attach the ventilation grille
(3)
and position it correctly on the decorative strip
(4)
.
Snap the retaining lugs
(1)
into place.
Snap the retaining lugs into the area
(2)
.
