Remove the chain tensioner (engine removed)

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

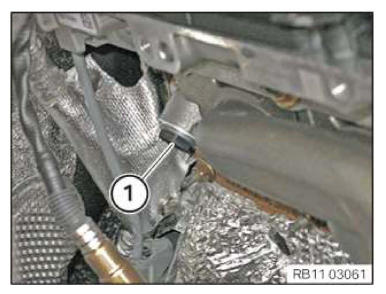

• A small amount on motor oil emerges when removing the chain tensioner (1), so have a cleaning cloth ready.
• Release the chain tensioner (1).
