Installing the oil deflector

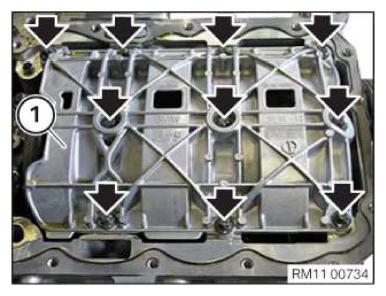

Install the oil deflector (1).
Replace the screws (arrows).
Parts: Screws

Tighten all the screws (arrows) crosswise.

TIGHTENING TORQUES SPECIFICATION

Oil deflector to crankcase
M8x35 Replace screws.
	Joining torque	15 Nm
	Angle of rotation	45°

G14477352

Courtesy of BMW OF NORTH AMERICA, INC.

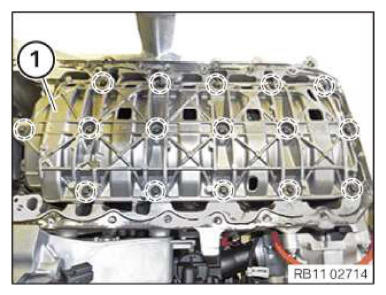

Replace the highlighted screws.
Parts: Screws
Position the oil deflector (1).

Tighten marked screws.

TIGHTENING TORQUES SPECIFICATION

Oil deflector to crankcase
M8 x 35 Replace screws.
	Joining torque	15 Nm
	Angle of rotation	45°

G14477353

Courtesy of BMW OF NORTH AMERICA, INC.

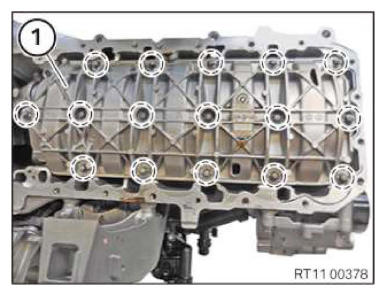

Replace screws (marks).
Parts: screw
Guide in and position the oil deflector (1).

Tighten screws (marks) in crosswise sequence using the special tool 0 490 504 (00 9 120).

TIGHTENING TORQUES SPECIFICATION

Oil deflector to crankcase
M8x35 Replace screws.
	Joining torque	15 Nm
	Angle of rotation	45°

G14477354

Courtesy of BMW OF NORTH AMERICA, INC.
