Install the oil vacuum pump

Check

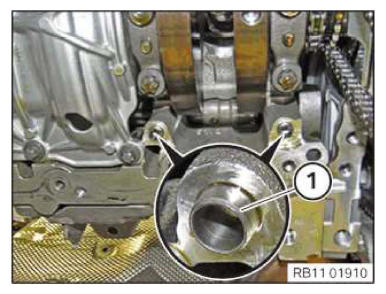

• Check the correct position of the lining sleeves (1) and whether or not they are damaged.

  Courtesy of BMW OF NORTH AMERICA, INC.

Result

Lining sleeves (1) are damaged or missing.

Measure

• Replace the lining sleeves (1).

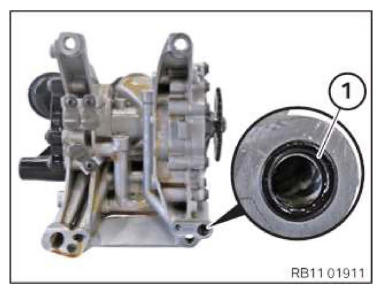

• Replace sealing ring (1).

  Parts: Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

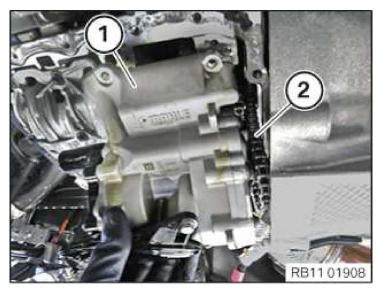

• Guide the oil vacuum pump (1) into the drive chain (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

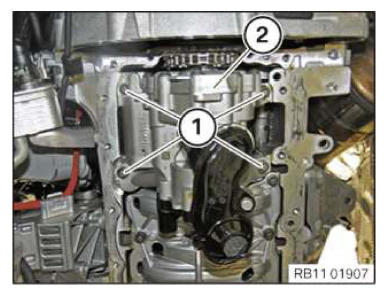

• Position the oil vacuum pump (2) correctly on the fitting sleeves.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Oil pump to crankcase
  External Torx socket M8x35
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
