Mount the front caliper carrier

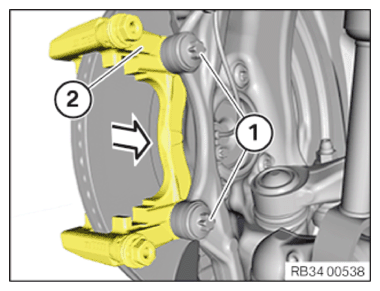

- Fit the brake anchor plate (2) in arrow direction.
- Replace screws.
Parts:
Screws
- Insert screws (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Brake caliper/brake anchor plate at front swivel bearing |
M12
Replace screw. |
tightening torque
110 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
