Install coolant line between the coolant pump and cylinder head
- Check the sealing ring (1) and (2) for damage and replace the coolant line (3) if necessary.
Parts: Sealing rings
NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.

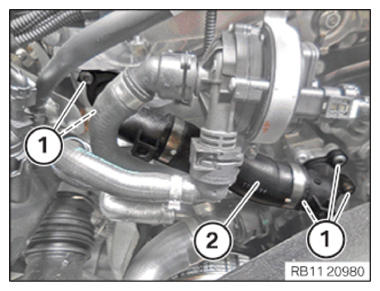

Failure to comply with the regulations can lead to leaks and damage. - Feed in and install coolant line (2).
- Hand-tighten the bolts (1).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Coolant line to coolant pump/cylinder head | ||
| M6x20 | Tightening torque | 8 Nm |
- Feed in and position the electric coolant pump (3).
- Insert and install the retainer (2).
- Make sure the retainer (2) is positioned correctly.
NOTE:
RISK OF DAMAGE
Improper screw length can cause component damage.
The use of screws of improper length can lead to component damage.
Improper screw length can cause component damage.
The use of screws of improper length can lead to component damage.
- Note the correct screw length.
- Install screws that correspond to the original length.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Electric coolant pump on component carrier | ||
| M6 Replace screws. |
tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING THE THROTTLE BODY .
- Refer to INSTALLING THE DRIVE BELT FOR THE COOLANT PUMP .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to INSTALLING RESONATOR .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to INSTALLING BATTERY COVER IN TRUNK .
- Refer to CONNECTING THE NEGATIVE BATTERY CABLE (12 V BATTERY) .
- Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
- Refer to INSTALLING FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
