Install heat management module

• Replace the O-Ring (1) and gasket (2).

  Parts:  O-ring and gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean sealing surface (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed out the heat management module (1) to the outside rear out of the component carrier (2).

Courtesy of BMW OF NORTH AMERICA, INC.

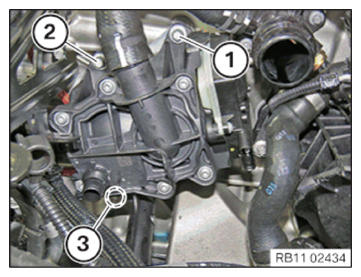

• Tighten the screws (1) to (3).

Fig 1: Heat Management Module Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert coolant hose onto the heat management module and fasten with the clamp (5).

  See that the marking lines up.

  NOTE: TECHNICAL INFORMATION
  Make sure that the connections are locked correctly. The locks must engage audibly.
• Connect and lock the coolant hoses (3) and (4).
• Clip in positive battery cable in area (2).
• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.
