Securing the hydraulic lines to the transmission
- Replace sealing rings.
Parts: Sealing ring

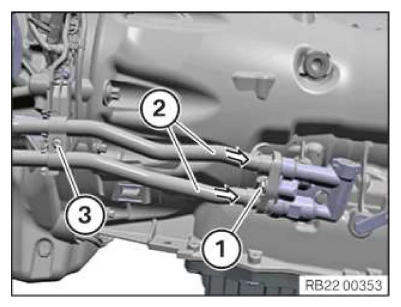

- Install hydraulic lines (2) on the transmission in the direction of the arrow.
- Position and tighten the screw (1).
TIGHTENING TORQUES SPECIFICATION
| Transmission oil line to transmission | ||
| M6x25 Replace the sealing ring. |
||
| Tightening torque | 8 Nm | |
- Position and tighten the screw (3).
TIGHTENING TORQUES SPECIFICATION
| Transmission oil line on holder | ||
| M6 | ||
| Tightening torque | 4 Nm | |
