Remove oil sump
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

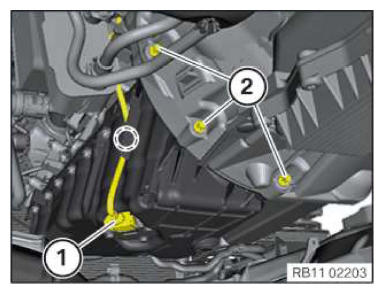

- Unlock plug connection (1) and disconnect.
- Unclip cable in the marked area.
- Loosen screws (2).

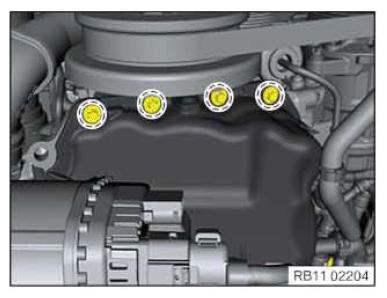

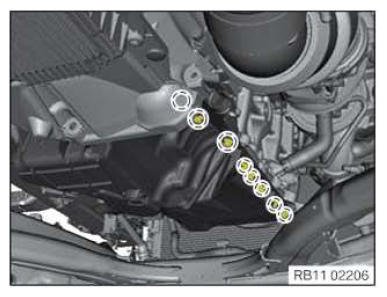

- Remove all screws (marks).

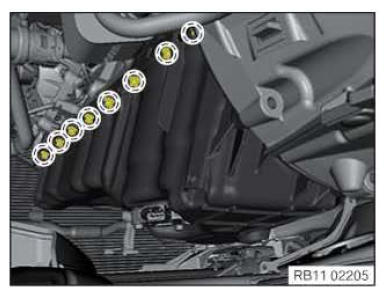

- Remove all screws (marks).
- Remove all screws (marks).

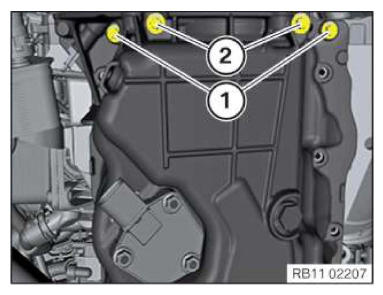

- Loosen screws (1) and (2).
NOTE:
TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.

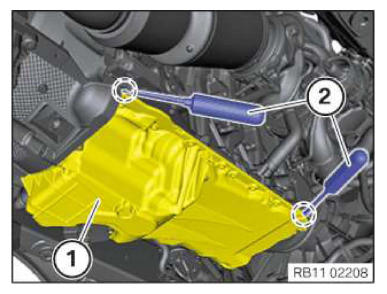

- Loosen oil sump (1) in the marked areas with the screwdrivers (2).
NOTE:
TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.

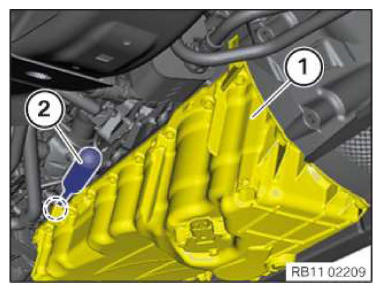

- Loosen oil sump (1) in the marked area with screwdriver (2).

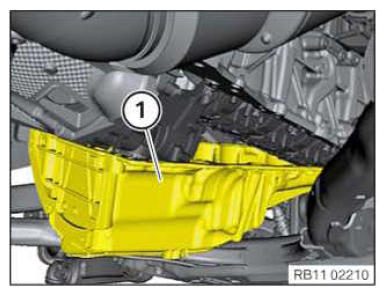

- Remove oil sump (1) from the bottom rear.
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

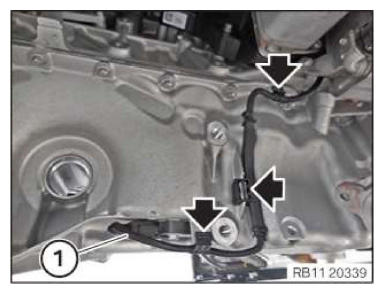

- Unlock and detach the clamps (arrows).
- Unlock and loosen connector (1).

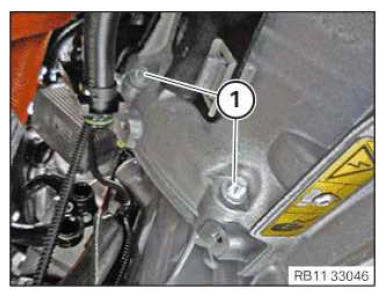

- Unscrew the transmission bolts (1).

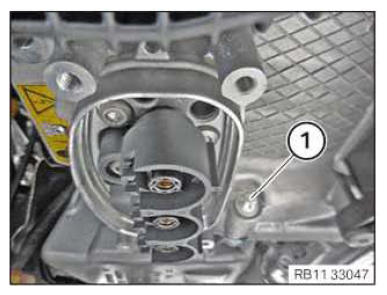

- Loosen the transmission bolt (1).

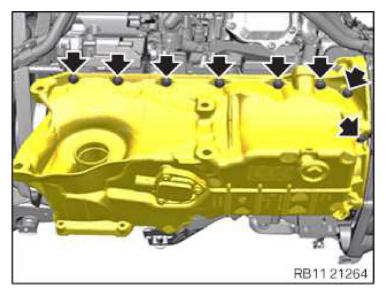

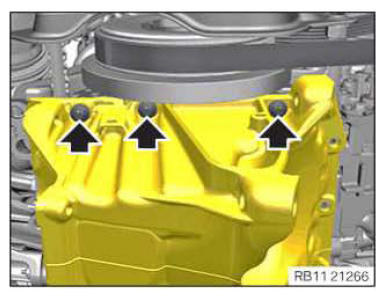

- Remove screws (arrows).

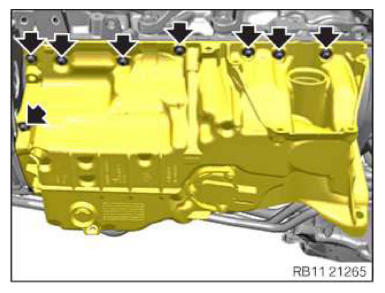

- Remove screws (arrows).
- Remove screws (arrows).
NOTE:
TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.

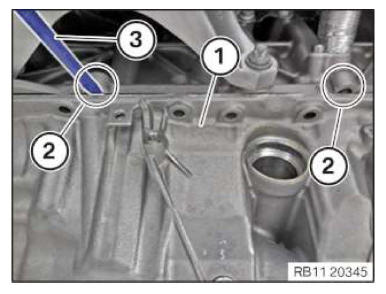

- Detach the oil pan (1) in the marked areas (2) with suitable tools (3).
- Thread out the oil pan (1) down and back and remove.
