Installing the engine on the assembly stand
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
- Variant with rear wheel drive:

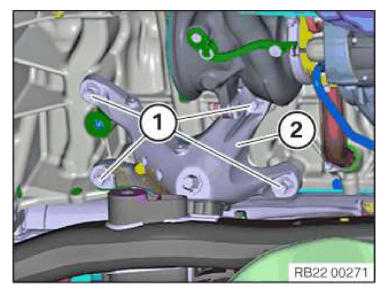

Loosen screws (1).
Remove the engine support bracket (2).
- Variant with all-wheel drive:

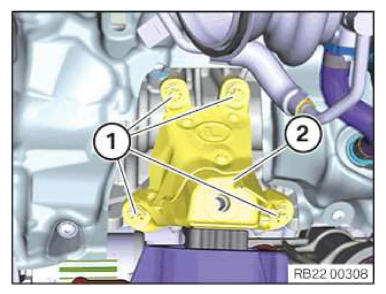

Loosen screws (1).
Remove the engine support bracket (2).

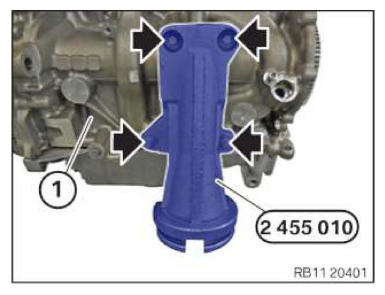

- Position the special tool 2 455 010 on the engine (1).
- Position and tighten the screws (arrows).TIGHTENING TORQUES SPECIFICATION

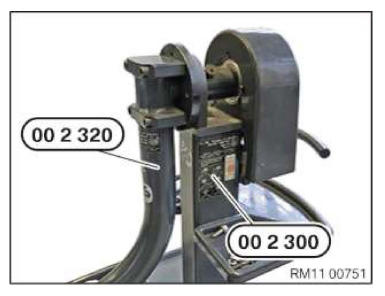

Special tool 2 455 010 to crankcase M10x30 Tightening torque 38 Nm - Position the assembly jig 0 495 187 (00 2 300) with the special tool 0 495 196 (00 2 320).
- Tighten the screws (arrows).TIGHTENING TORQUES SPECIFICATION

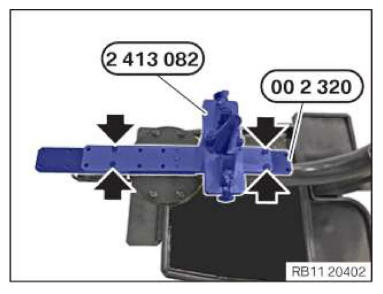

Special tool 00 2 320 to special tool 00 2 300 M14X95 Tightening torque 130 Nm - Screw special tool 2 413 082 together with special tool 0 495 196 (00 2 320).

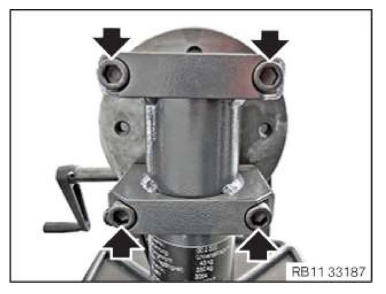

- Tighten the screws (arrows).TIGHTENING TORQUES SPECIFICATION

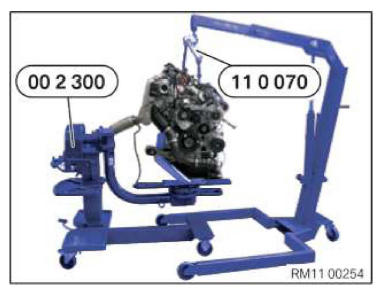

Special tool 2 413 082 to special tool 00 2 320 M12x65 Tightening torque 100 Nm - Position the workshop crane with the special tool 0 490 579 (11 0 070) and the engine on the special tool 0 495187 (00 2 300).
- Detach the holder (2) in the direction of the arrow.

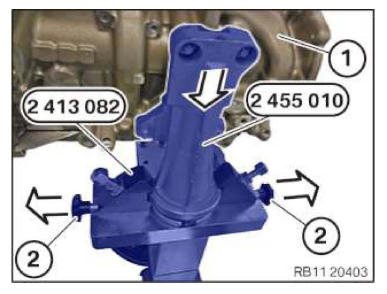

- Position the engine (1) with the special tool 2 455 010 in the direction of the arrow on the special tool 2 413 082.

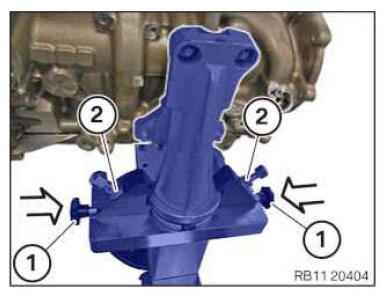

- Lock the holder (1) in the direction of the arrow.
- Tighten nuts (2).
