Install output shaft on left and right
NOTE:
Perform the steps on the right and left side
- Installing the output shaft
- Installing the output shaft
NOTE:
TECHNICAL INFORMATION
It is essential to replace the circlip of the output shaft.
It is essential to replace the circlip of the output shaft.
NOTE:
TECHNICAL INFORMATION
Extreme force being required during installation is an indication that the component is damaged or deformed. Check component and replace if necessary.
Extreme force being required during installation is an indication that the component is damaged or deformed. Check component and replace if necessary.
- Check the gearing of the output shaft for damage and replace damaged parts if necessary.
- Check the bellows for damage and replace damaged parts as needed.
- When reusing the output shaft:

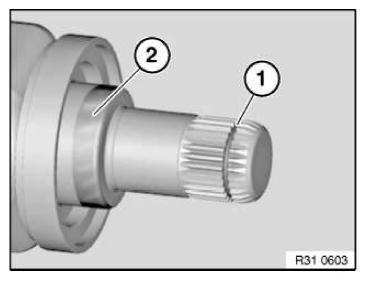

Replace the circlip (1).
Parts: Circlip
- Coat the contact surfaces (2) using approved final drive transmission oil.
NOTE:
The figure shows the procedure for the front axle differential. The procedure for the bearing bracket is identical.

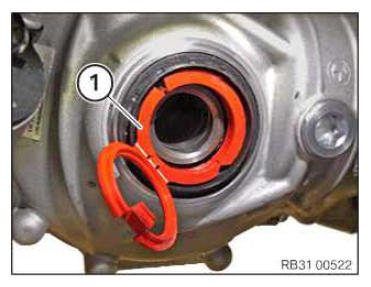

- Fold open the assembly protection ring (1).

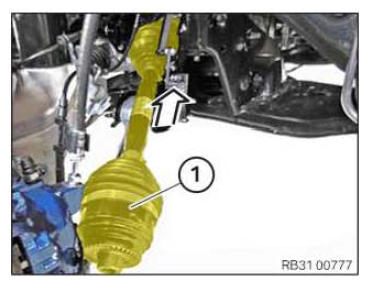

- Guide output shaft (1) in the arrow direction Into the front aide transmission or the bearing bracket; but do not let it engage.

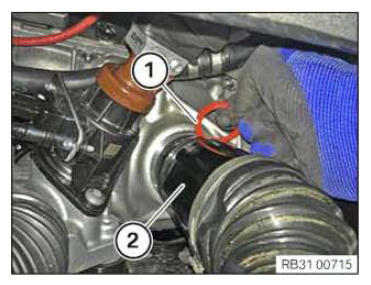

- Pull the lug of the installation protection ring (1) until one of the two predetermined breaking points yields.
- Pull out and dispose of the Installation protection ring (1).
- Slide the output shaft (2) Into front axle transmission or bearing bracket up to the stop.
The output shaft (2) must engage noticeably and audibly
