Install heat shield for cylinder head cover

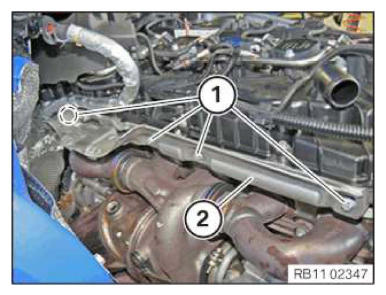

• Position the heat shield (2) and secure it with screws (1).

TIGHTENING TORQUES SPECIFICATION

Heat shield to cylinder head
	M8x12
	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
