Install both actuators (engine removed)

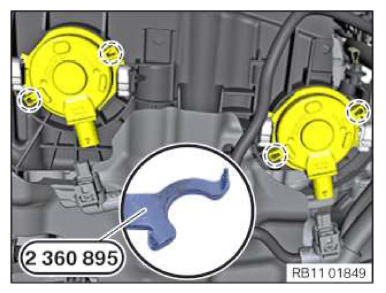

NOTE: The figure shows the rear of the engine.

• Position special tool 2 360 895 correctly.

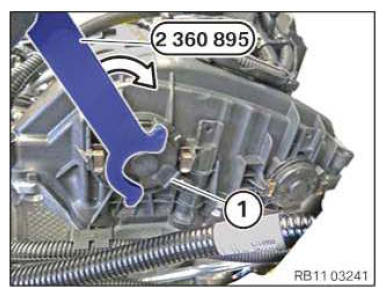

• Position the actuator (1) of the exhaust side and turn in the arrow direction with the special tool 2 360 895 until the limit stops tap the clamps.

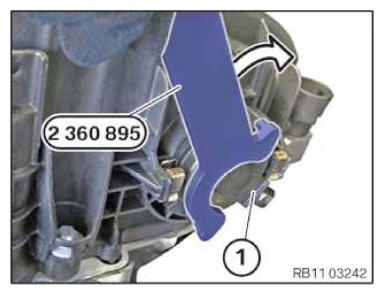

• Position the actuator (1) of the intake side and turn in the arrow direction with the special tool 2 360 895 until the limit stops tap the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

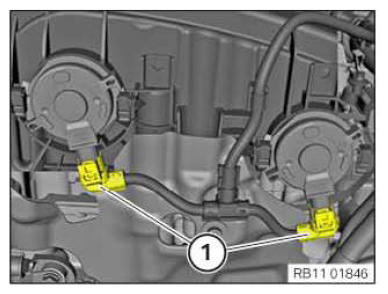

NOTE: The figure shows the rear of the engine.

• Connect both connectors (1) lay the cable correctly

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
