Attach the right and left tension struts on the swivel bearing

Securing tension strut on swivel bearing

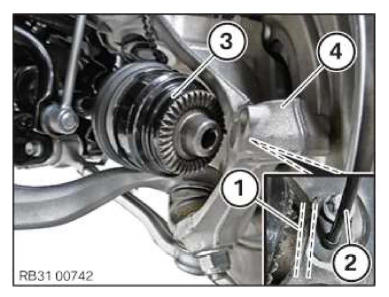

• Make sure there is sufficient distance (1) between the wheel speed sensor (2) and the output shaft (3).
• Turn swivel bearing (4) outwards.
• Place the output shaft (3) in the driving direction to the side.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

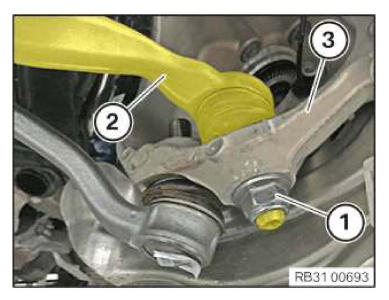

• Position tension strut (2) on swivel bearing (3).
• Replace nut (1).

  Parts: Nut

• Tighten nut (1).
  NOTE: Counter-hold at the Torx socket.
