Securing the tie rod on the left and right of the swivel bearing
NOTE:
Perform the steps on the left and right side.
Securing the tie rod on the swivel bearing

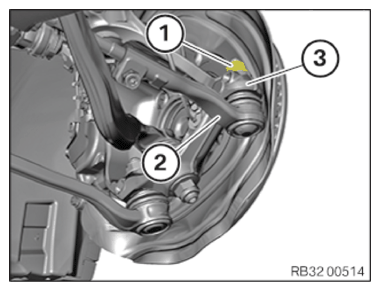

- Position the track rod (2) on the swivel bearing (3).
- Replace nut (1).
Parts: Nut
- Tighten nut (1).
When doing this, counter-hold at the Torx socket if necessary.
TIGHTENING TORQUES SPECIFICATION
| Tie rod end to swivel bearing | |
| M14 Replace nut. |
Tightening torque 165 Nm |
