Secure the tie rod to the right on the swivel bearing
NOTE:
Description is for left component only. Procedure on the right side is identical.

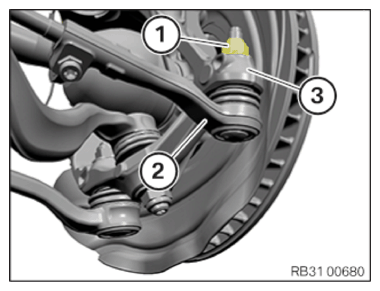

Securing the tie rod on the swivel bearing
- Position the track rod (2) on the swivel bearing (3).
- Replace nut (1).
Parts: Nut
- Tighten nut (1).
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUES SPECIFICATION
| Tie rod end to swivel bearing | |
| M14 Replace nut. |
Tightening torque 165 Nm |
