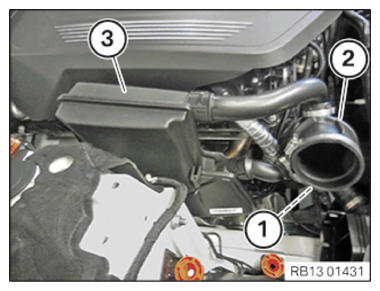

Removing the resonator with the top clean air pipe

• Loosen clamp (1) and detach the top clean air pipe (2).
• Detach resonator (3) upwards from the rubber mount.
• Guide out and resonator (3) with the upper clean air tube (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
