Remove the second bulkhead at the bottom

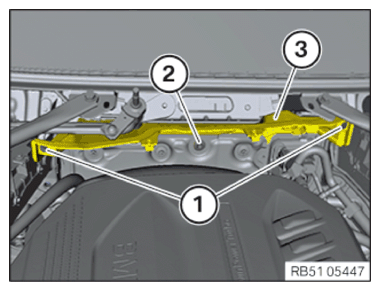

Loosen screws (1).
Loosen nut (2).
Feed out and remove the second bulkhead at the bottom (3).

G14462671

Courtesy of BMW OF NORTH AMERICA, INC.
