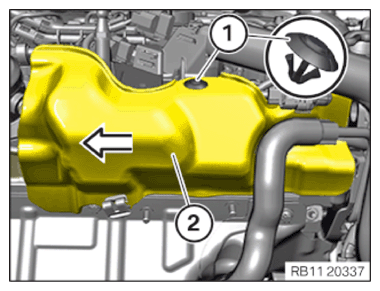

Remove the cylinder head cover acoustic cover

• Loosen clip (1).
• Carefully thread out the acoustic cover (2) of the cylinder head cover in the direction of the arrow and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

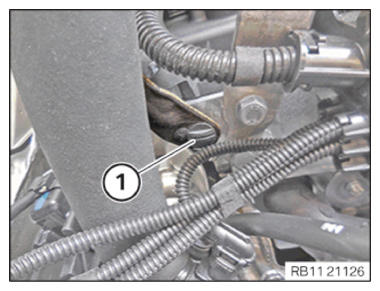

• Loosen clip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

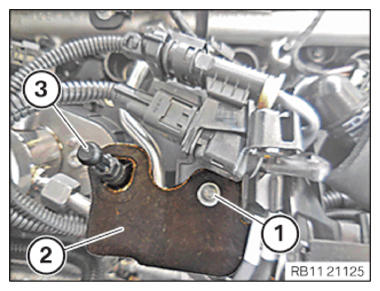

• Loosen screw (1).
• Guide out acoustic cover (2) out of the ball hub (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
