Releasing the electric coolant pump and coolant hoses from the front axle support (M40i 6-cyl.)

Release the screws (1) from the holder for the electric coolant pump (2).

Courtesy of BMW OF NORTH AMERICA, INC.

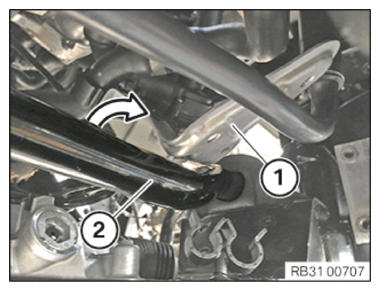

Position the holder for the electric coolant pump (1) above the anti-roll bar (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the coolant hoses (1) from holders (2) from the front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the holder (1) on the right side on the front axle support (2).

Courtesy of BMW OF NORTH AMERICA, INC.
