Releasing the electric coolant pump and coolant hoses from the front axle support (4-cyl. models)

• Release the screws (1) from the holder for the electric coolant pump (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the holder for the electric coolant pump (1) above the anti-roll bar (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

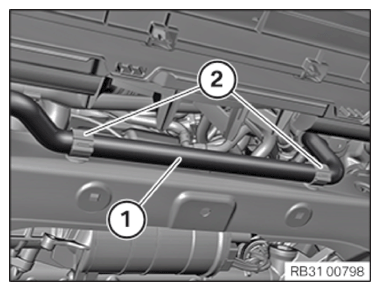

• Release the coolant hose (1) from holders (2) on front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.
