Release wishbone on right and left from swivel bearing

Release the wishbone from the swivel bearing

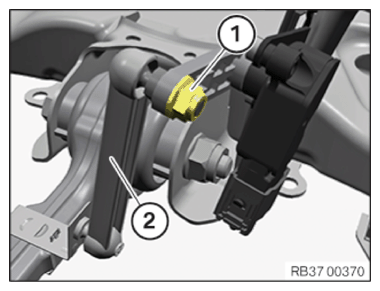

• Release the nut (1).
• Release attachment rod (2) from ride height sensor.

  Courtesy of BMW OF NORTH AMERICA, INC.

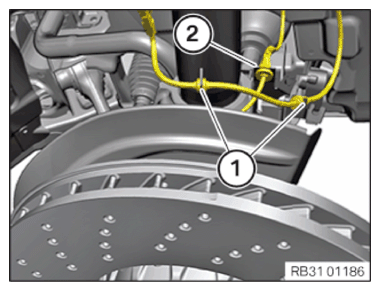

• Unclip cable for the wheel speed sensor (2).
  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
• Unclip cables for the electronic damping control from the holders (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

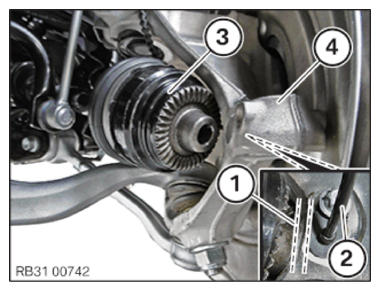

• Make sure there is sufficient distance (1) between the wheel speed sensor (2) and the output shaft (3).
• Turn swivel bearing (4) outwards.
• Set output shaft (3) aside in direction of travel.

  Courtesy of BMW OF NORTH AMERICA, INC.

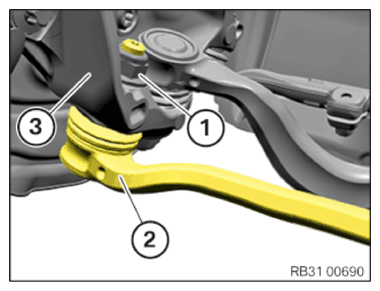

• Loosen nut (1).
  NOTE: Counter-hold at the Torx socket.
• The wishbone (2) is released from the swivel bearing (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

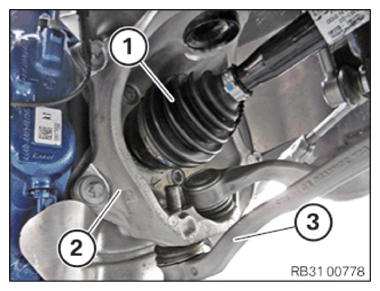

• Position output shaft (1) on the swivel bearing (2).
• Guide out the wishbone (3) from the swivel bearing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release the wishbone from the swivel bearing

• Unfasten nut (1).
  NOTE: Counter-hold at the Torx socket.
• Release the wishbone (2) from the swivel bearing (3).

Courtesy of BMW OF NORTH AMERICA, INC.
