Placing the output shaft, right, to the side
NOTE:
Description is for left component only. Procedure on the right side is identical.
Placing the output shaft aside

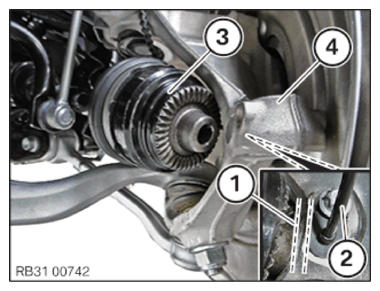

- Make sure there is sufficient distance (1) between the wheel speed sensor (2) and the output shaft (3).
- Turn swivel bearing (4) outwards.
- Set output shaft (3) aside in direction of travel.
